31116746

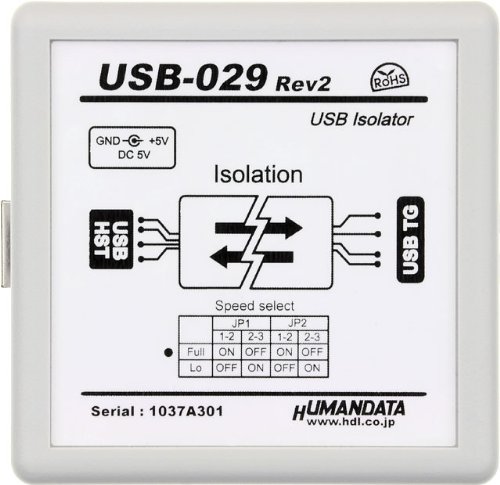

USB-029 is a USB 2.0 Full Speed (12Mbps) and Low Speed (1.5Mbps) compliant isolator which isolates between a USB host and a USB peripheral device with 3500VDC. With USB-029, it can be expected to eliminate ground loops that can cause measurement errors and equipment from surges, common-mode voltage, static discharge, magnetic fields, and radio frequency interference.There is no need to install any drivers. It works with every operating system such as Windows, Linux, Mac OS X.
USB host connector which is standard Type B female and have to be connected to a PC or other USB host device
USB target connector which is standard Type A female and have to be connected to a USB peripheral device
USB 2.0 Full Speed (12Mbps) and Low Speed (1.5Mbps) compliant. OS-Independent (No drivers required)
USB-029 is powered through a USB port (Bus-powered) or an AC adapter (Self-powered)DC-DC converter supply isolated voltage to a USB peripheral device from a USB host if no external power supply is present. 3500VDC bus isolation. ESD and surge protection.
Includes a USB cable(1.8m) , Includes an AC adapter, RoHS compliant, MADE IN JAPAN
