MADRIX USB ONE DMX USB Interface for LED & Lighting Control - Professional DMX512 Controller for Stage, DJ, and Architectural Lighting (Model: IA-HW-001001)

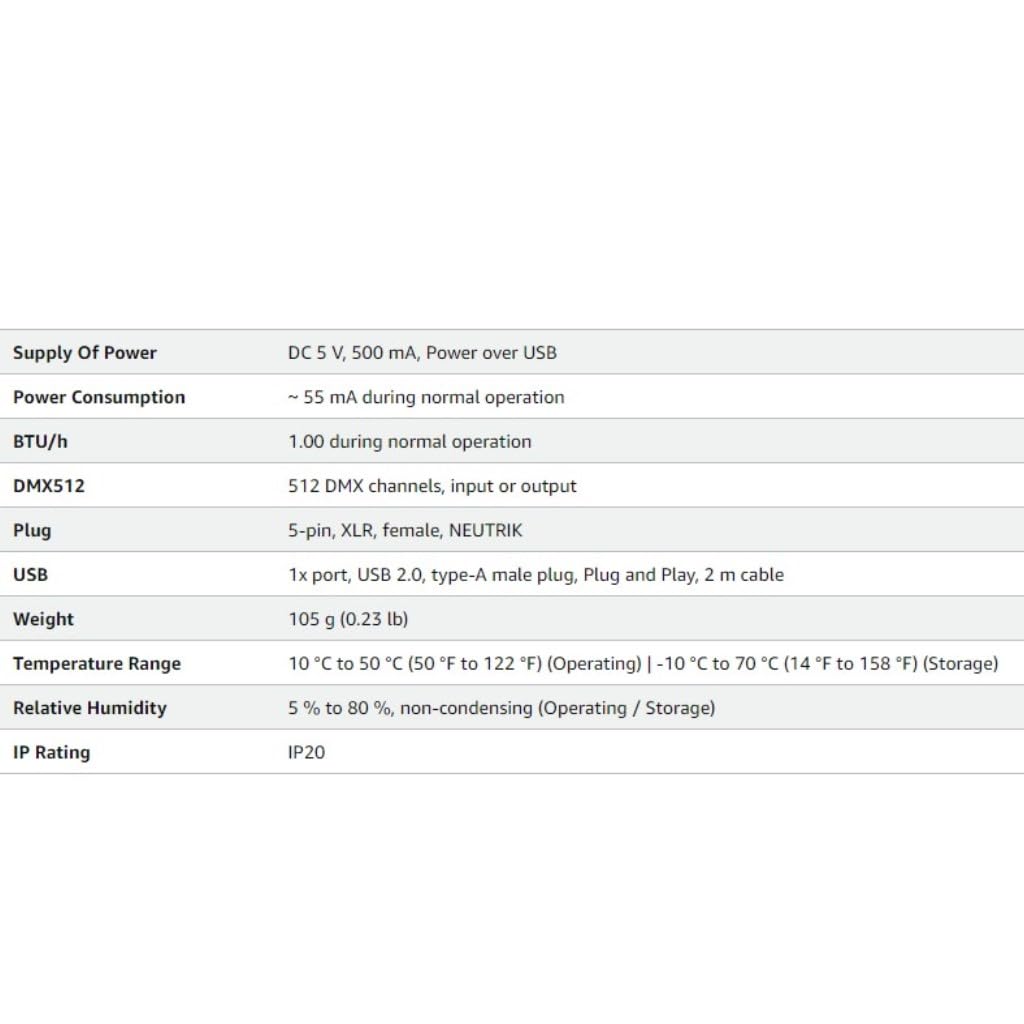

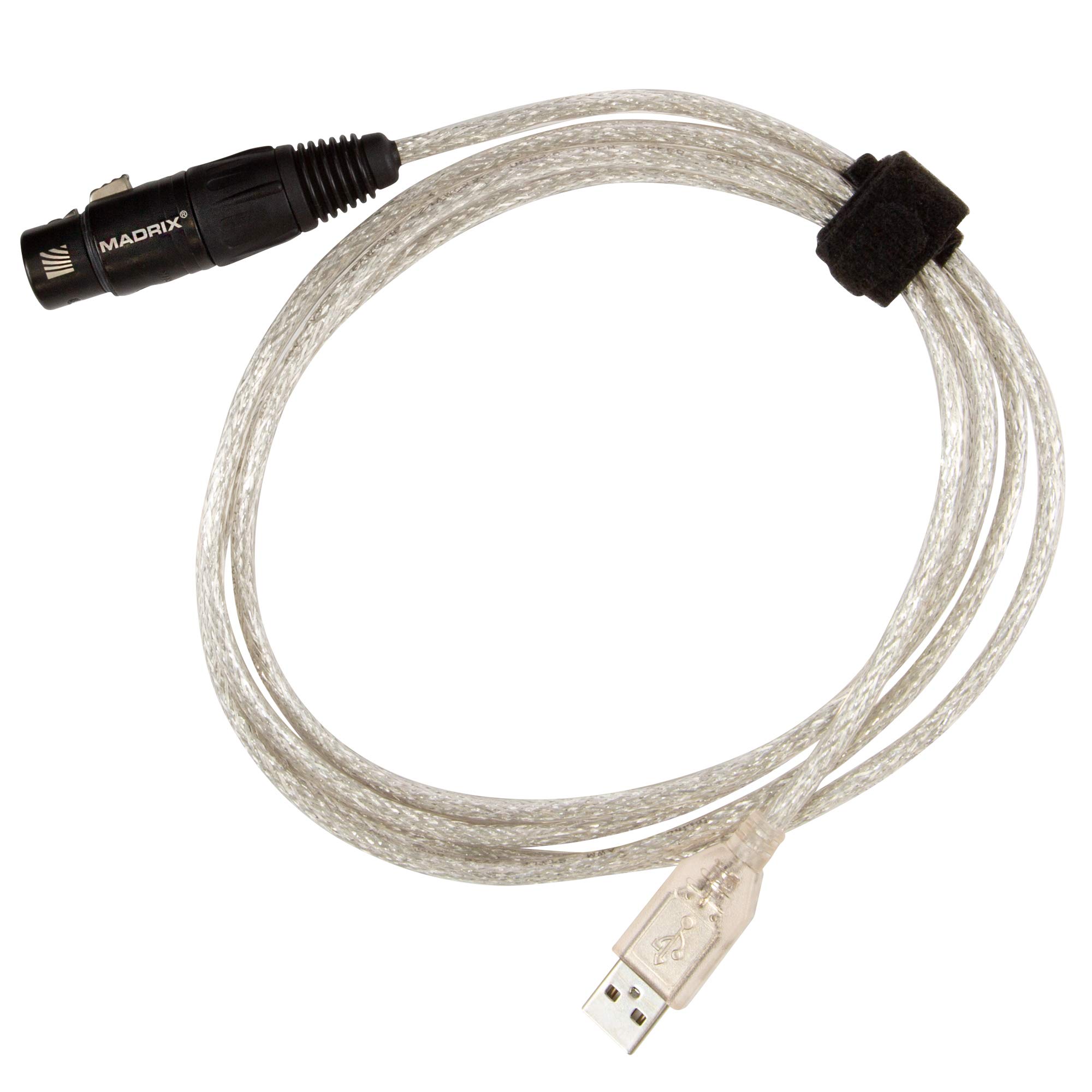

MADRIX USB One DMX USB Lighting Controller The USB ONE allows you to control 512 DMX channels via Madrix software. DMX-IN/OUT with 5-pin NEUTRIK XLR Port: This device allows you to send or receive data via MADRIX using 512 DMX channels. A gender changer with 5-pin male to 3-pin or 5-pin male is required for DMX-IN.USB 2.0 Standard: The latest USB 2.0 standard is fully supported to allow for a higher maximum speed of 480Mbit/s.Power Over USB: The interface is powered directly via the USB port and does not need an additional power supply.Hot Swapping & Plug and Play: Devices can be connected to and disconnected from the computer during use and without a reboot.Remote Control: MADRIX can be controlled remotely using the built-in DMX-IN functions.Frame Rate Stability: Up to 60 devices can be connected to a single USB host controller without having any frame rate problems (60 DMX512 interfaces amount to 30,720 DMX channels).Active USB: Must be connected to an active USB 2.0 hub with a power supply. Technical Specifications Supply Of Power DC 5 V, 500 mA, Power over USB Power Consumption ~ 55 mA during normal operation BTU/h 1.00 during normal operation DMX512 512 DMX channels, input or output Plug 5-pin, XLR, female, NEUTRIK USB 1x port, USB 2.0, type-A male plug, Plug and Play, 2 m cable Weight 105 g (0.23 lb) Temperature Range 10 °C to 50 °C (50 °F to 122 °F) (Operating) | -10 °C to 70 °C (14 °F to 158 °F) (Storage) Relative Humidity 5 % to 80 %, non-condensing (Operating / Storage) IP Rating IP20
